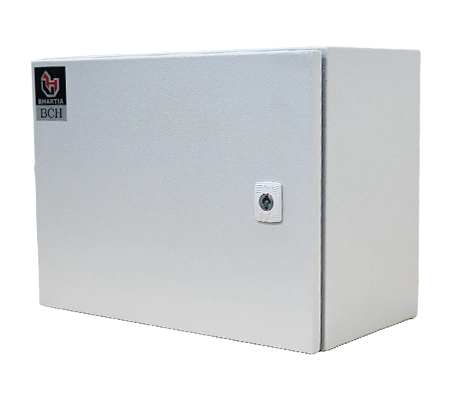

| BCH Cat code: | BIL-40000 |
| Size of Enclosure: | Width: 200mm Height: 300mm Depth: 120mm |
| Size of mounting plate: | Width: 150mm Height: 276mm |
| Thickness of enclosure: | Enclosure body: 1.2mm CRCA Front door: 1.2mm CRCA Gland plate: 1.6mm CRCA Mounting Plate: 2.0mm GPSP |
| Surface finish: | Enclosure Body, door and gland plate – Powder coated with Tri catatonic Zn Phosphating Mounting Plate – GPSP finish |
| Colour: | Structure RAL-7035 |
| Supply include: | Enclosure with Hinged door (PU Foam gasket) Gland Plate Mounting Plate Double-bit insert Cam lock |
| Protection Category: | IP 66 as per IEC 60529: 2013 |
| Mechanical Impact: | IK 10 as per IEC 62262: 2002 |
| No of doors: | 1 |
| No of Lock: | 1 |
| No of gland plate: | 1 |
| Door opening: | 120° |
| Weight of enclosure: | 3.5Kg |
