DC contactor working principle: arc control, coils and main contacts

Quick answer

A dc contactor is an electrically operated switching device used to make or break a DC power circuit. It uses a coil to move the contact mechanism, main contacts to carry load current, and arc-control parts to manage the arc created when the contacts open under load. For product-level ratings and variants, review BCH DC contactors. For the wider system context around motor protection and control, see motor control and protection.

The safest selection does not start with current alone. Start with the load type, DC voltage, making and breaking duty, coil voltage, pole count, operating frequency, enclosure conditions and coordination with nearby protection devices.

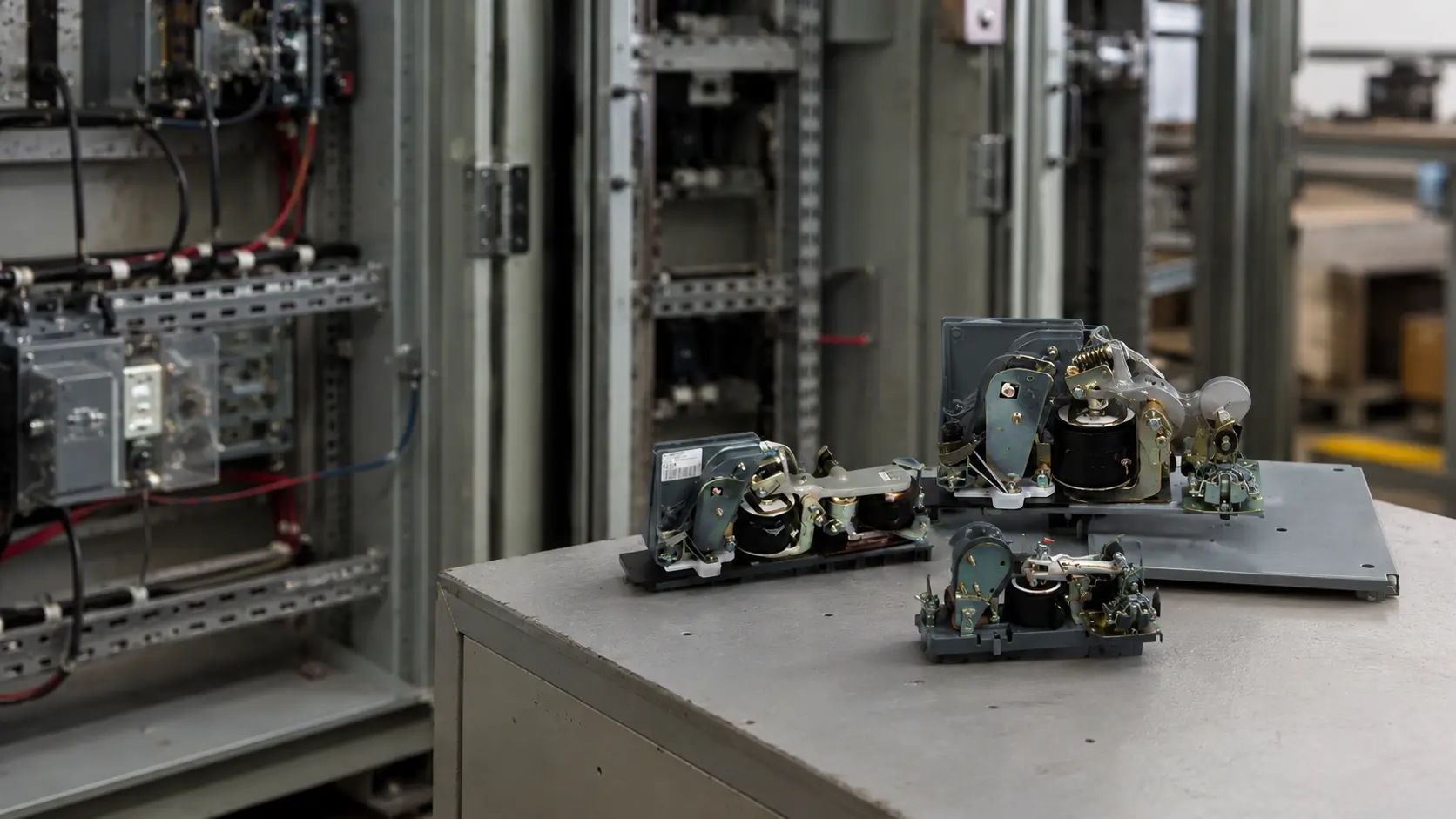

What a DC contactor does inside a circuit

In a DC panel, the contactor is the controlled switching point between the supply and the load. When the control circuit energizes the coil, the magnetic mechanism pulls the moving contacts closed. Current then flows through the main contacts to the load. When the coil is de-energized, spring pressure opens the contacts and interrupts the circuit.

That simple sequence becomes more demanding with DC loads because the arc does not benefit from the natural current zero that occurs in AC circuits. The contactor must open the circuit while the current is still trying to continue. That is why contact spacing, contact material, arc chambers, blowout arrangements and correct polarity can matter depending on the design and rating.

For engineers comparing DC switching with general contactor selection, the related BCH guide on contactor selection for industrial motor control is a useful supporting read. If the project also uses AC loads, compare the requirement with the BCH contactor range instead of assuming one family suits every duty.

How the main parts work together

Part

What it does

What to verify before selection

Coil

Creates the magnetic pull that closes the contactor when the control circuit is energized. Coil voltage, control supply stability, pickup voltage, drop-out behavior and coil suppression needs.

Main contacts

Carry the load current after the contactor closes. Rated current, DC voltage, duty, contact wear, electrical life and number of poles.

Arc-control system

Controls and extinguishes the arc when the contacts open under DC load. Breaking capacity, polarity requirements, arc chute design, contact spacing and duty category.

Auxiliary contacts

Provide feedback or control interlocking for other panel functions. NO or NC arrangement, signaling needs and wiring logic.

Mounting and terminals

Keep the device accessible and safe inside the panel. Panel space, cable entry, ventilation, service access and vibration conditions.



Why arc control needs more attention in DC switching

When a contactor opens, the current does not stop instantly. An electric arc forms between the separating contacts. In AC systems, current crosses zero every half cycle, which helps the arc die out. In DC systems, the current direction stays the same, so the arc can persist longer unless the contactor design forces it to stretch, cool and extinguish.

That is why a dc contactor should be checked against the actual DC voltage and breaking duty, not just the thermal current rating. A contactor that carries current comfortably may still be a poor choice if it cannot interrupt the circuit safely under the specified load condition.

For supporting concepts around switching equipment, the published BCH article on contactor vs relay differences can help readers understand why a contactor is used where load switching is heavier than a basic relay application.

Where DC contactors are commonly used

A dc contactor is usually selected for loads that need reliable DC make and break control. Common examples include DC motor control, cranes, battery circuits, traction-related panels, renewable-energy battery interfaces, industrial machinery and DC starter circuits. In each case, the load behavior matters as much as the name of the device.

Application Why the contactor matters Extra checks

DC motor control

Motors can produce high starting current and switching stress. Motor rating, duty cycle, reversing logic, braking method and protection coordination.

Cranes and hoists

Frequent starts and stops can increase contact wear. Mechanical shock, operator cycle, panel ventilation and maintenance access.

Battery circuits

Battery banks can deliver high fault current. DC voltage, polarity, isolation needs, short-circuit protection and safe disconnect practice.

Industrial panels

The contactor often works with several control and protection devices. Wiring access, auxiliary contacts, device coordination and spare-parts planning.



Selection checklist for a DC contactor

Use this checklist before opening a product page or issuing a purchase request. It reduces the risk of selecting a device that looks correct on current rating but fails under real duty.

  1. Confirm the DC supply voltage and the maximum operating voltage seen by the contactor.
  2. Identify the load type: motor, battery, resistive load, crane duty, starter duty or another DC load.
  3. Check the making and breaking duty rather than looking only at continuous current.
  4. Confirm coil voltage and whether the control supply is stable at pickup and hold conditions.
  5. Review the pole count and whether polarity must be respected during wiring.
  6. Check electrical life, mechanical life and expected switching frequency.
  7. Confirm panel conditions such as heat, dust, vibration, ventilation, cable routing and service access.
  8. Review coordination with short-circuit protection and motor protection devices before finalizing the panel.

When the DC contactor is part of a wider motor-control system, cross-check it with BCH overload relays and BCH MPCB products where the application requires overload or short-circuit protection. The related article on how motor starters work with contactors and overload relays also supports readers who need the system-level view.

Common mistakes that reduce service life

  • Choosing by current rating only and ignoring the DC voltage and breaking duty.
  • Using an AC contactor where the application requires a DC-rated switching device.
  • Ignoring polarity rules where the contactor design or arc-control system depends on wiring direction.
  • Selecting the wrong coil voltage or ignoring low control voltage during pickup.
  • Forgetting panel heat, cable bends, dust, vibration or access for maintenance.
  • Treating the contactor as a standalone item instead of coordinating it with protection devices.

What to check on the BCH DC contactor page

Once the duty is clear, the next step is to compare the requirement with the BCH DC contactors product page. Check the available ratings, construction, mounting fit, coil options, contact arrangement and suitability for the intended DC load. If the project is still at panel-design stage, use the BCH contact page or the enquiry page to share the duty details before freezing the layout.

Field checklist before final approval

  • Does the selected contactor match the actual DC load and switching duty, not only the tender current?
  • Is the coil voltage correct for the available control supply?
  • Has the team checked DC breaking duty, polarity and arc-control requirements?
  • Is there enough panel space for wiring, heat dissipation and replacement?
  • Are protection devices, interlocks and auxiliary contacts reviewed with the same drawing?
  • Has the maintenance team confirmed access for testing and replacement?

Frequently asked questions

What is a DC contactor?

A DC contactor is an electrically operated switch used to control DC power circuits. It closes when its coil is energized and opens when the coil is de-energized. The main contacts carry the load current, while the arc-control system manages the arc during interruption.

Why can a normal AC contactor be unsafe for DC switching?

DC current does not naturally cross zero like AC current. Because of that, the arc formed during contact opening can last longer. A contactor should be rated for the DC voltage, load type and breaking duty of the application.

What should I check first before choosing a DC contactor?

Start with DC voltage, load type, breaking duty, current rating, coil voltage and switching frequency. After that, review panel space, heat, wiring direction, protection coordination and maintenance access.

How is a DC contactor different from a relay?

A relay is usually used for control or lighter switching duties. A contactor is built for heavier load switching and higher service demands. For a detailed comparison, read BCH Electric’s article on contactor vs relay differences.

When should I contact BCH for selection support?

Contact BCH when the application has a high DC voltage, frequent switching, crane duty, battery duty, uncertain polarity requirements or tight panel conditions. Share the load details, coil voltage, switching frequency and panel environment through the BCH enquiry page.
